Zipper

Quality Zipper suppliers & exporter - all products made in China.

Share This Product:

Product Description

1.Zipper Release 2.Film Unwind 3.Bag Forming 4.Zipper Guide 5.Film Guide 6.Photocell 7.Horizontal Zipper Seal 8.Vertical Zipper Seal I 9.Bottom Seal 10.Vertical Seal 11.Tear Notch 12.Servo Advance 13.Cutting 14.Pouch Catching 15.Pouch Opening 16.Filling I 17.Filling II 18.Top Seal 19.Finished Product 20.Outlet

Technical Parameter

Modle	S-180Z	S-240Z
Pouch Size	5080mm（Min） 180225mm(Max)	100120mm（Min） 240320mm(Max)
Filling capacity	400ml	1000ml
Packing capacity	40-80ppm	30-70ppm
Powder	5.5KW	7.5KW
Air consumption	200NL/min	300NL/min
Machine Dimensions	4650mm(L) 970mm(W) 1500mm(H)	5400mm(L) 970mm(W) 1500mm(H)
Weight	1600kg	2300kg
Function	Flat Pouch, Shape, Hanging Hole, Zipper	3 side seal, 4 side seal, Zipper

Finished Bag Photo

Feedback form contact with us

Related Product

Standard

...

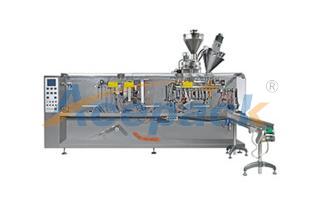

Top Spout

1 Film Unwind 2 Bottom Hole Punching 3 Bag Forming 4 Film Guide 5 Bottom Seal 6 Vertical Seal I 7 Vertical Seal II 8 Photocell 9 Servo Advance 10 Cutting 11 Pouch Catching I 12 Pouch Catching I...

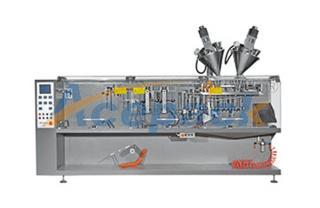

Duplex

1.Film Unwind 2.Bag Forming 3.Film Guide 4.Photocell5.Bottom seal 6.Vertical seal 7.Second Vertical Seal 8.Tear Notch 9.Double Cutting 10.Pouch Catching 11.Pouch Catching 12.Pouch Pulling 13.Po...

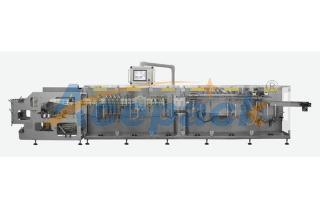

Link
